Cathodic Electro-Deposition (CED) is the most advanced and
environmentally friendly water-based coating process for metal
components, combining dip and spray pre-treatment, paint, post-treatment and baking.
coating type
APPLICATION COMBINATION
SALT SPRAY RESISTANCE
Ensures paint reaches every corner of components with intricate, complex shapes.
A chemically and mechanically durable finish that holds up under demanding conditions.
A uniform, high-quality finish sought by automobile manufacturers.
Dip and spray stages combined for consistent results across full production runs.

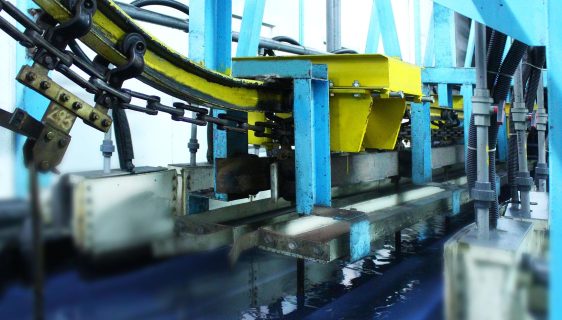

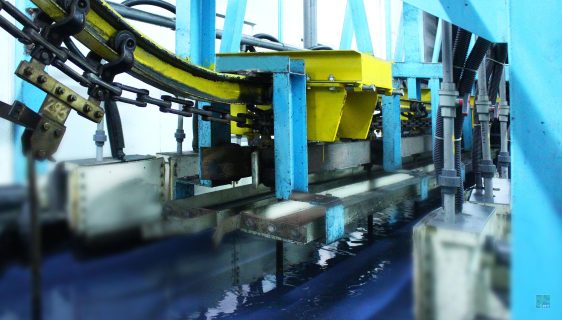

OMT’s E.D. Coating Line combines dip and spray for pre-treatment, paint
application, post-treatment, and baking — in a single integrated line
01 Dip and spray pre-treatment

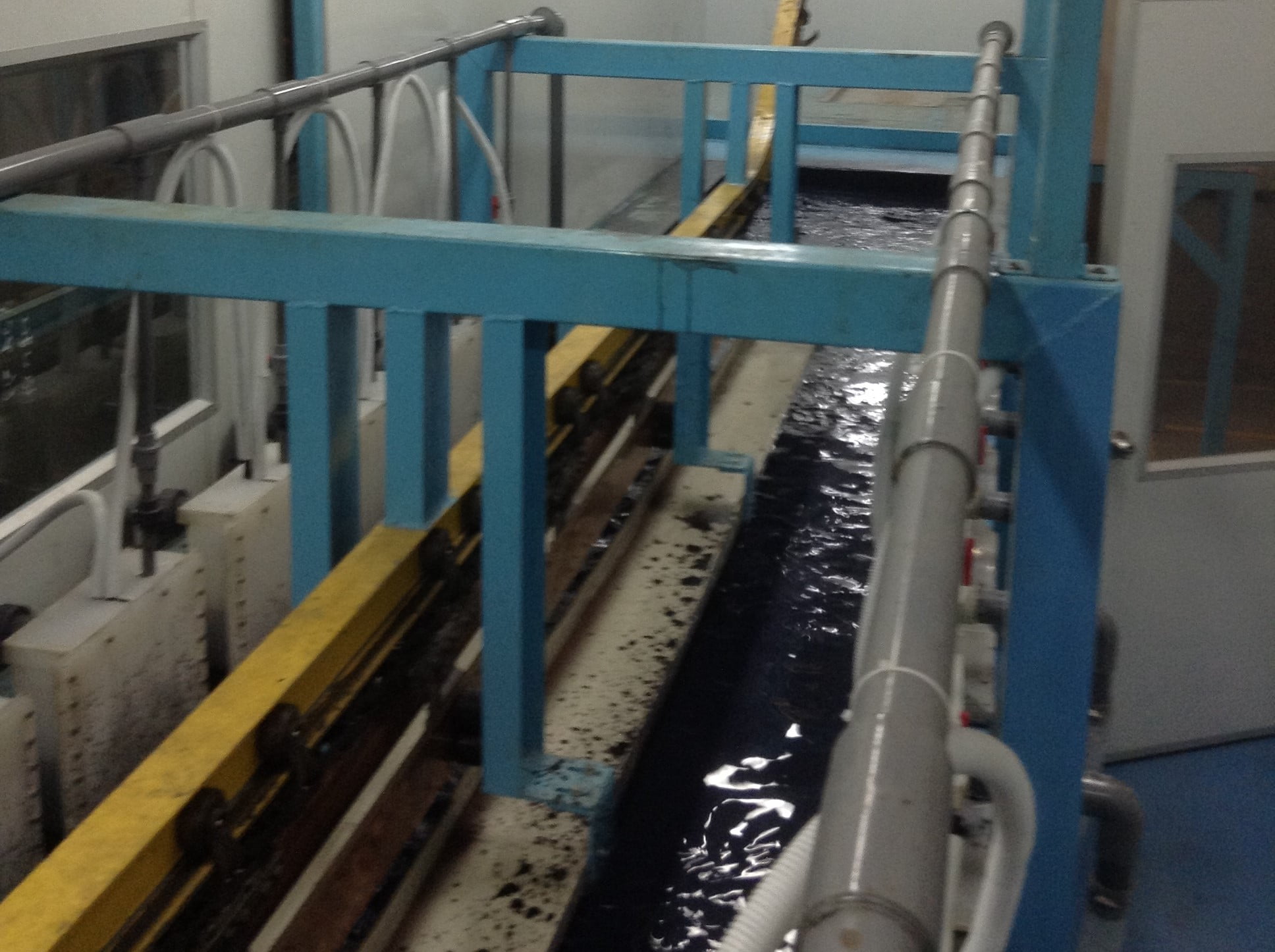

02 Cathode electro deposition paint stage
03 Post-treatment and baking to finish

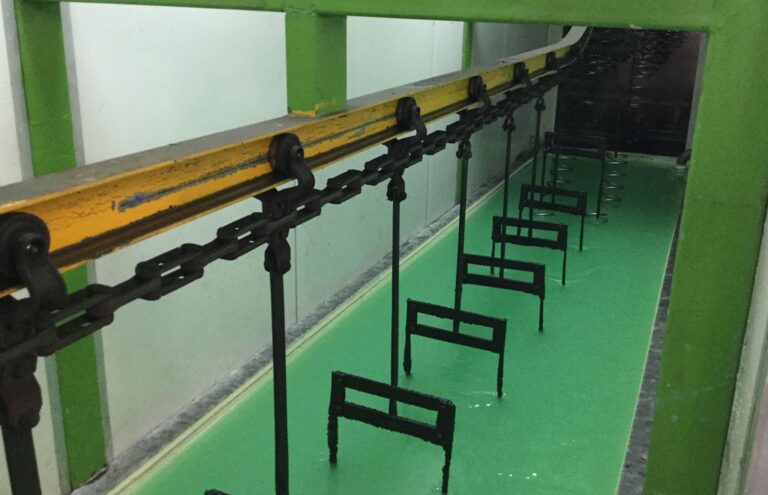

Pre-treatment dip line

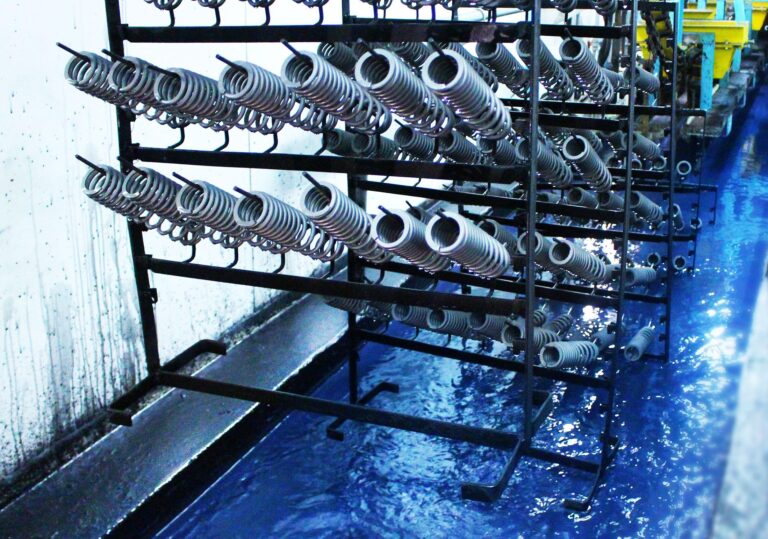

Phosphating tank

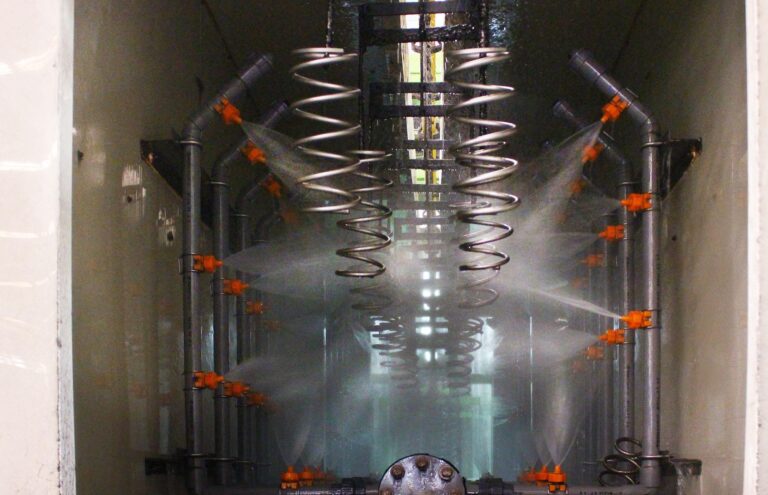

Spray pre-treatment tunnel

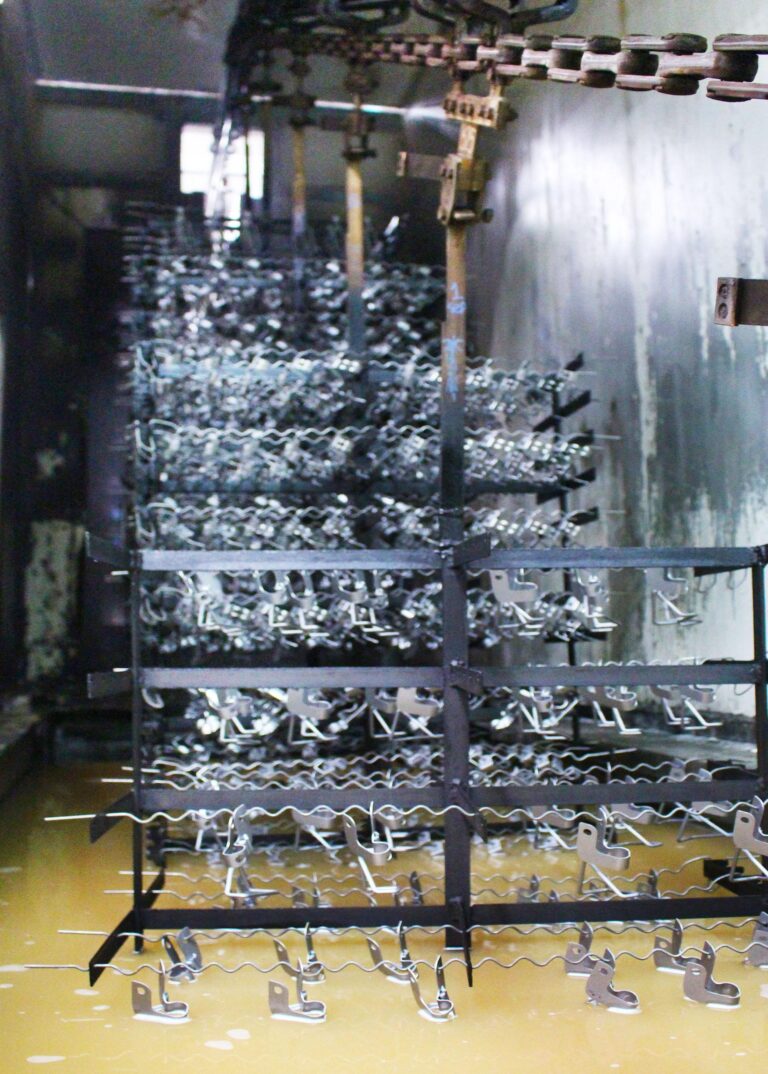

Pre-treatment washing

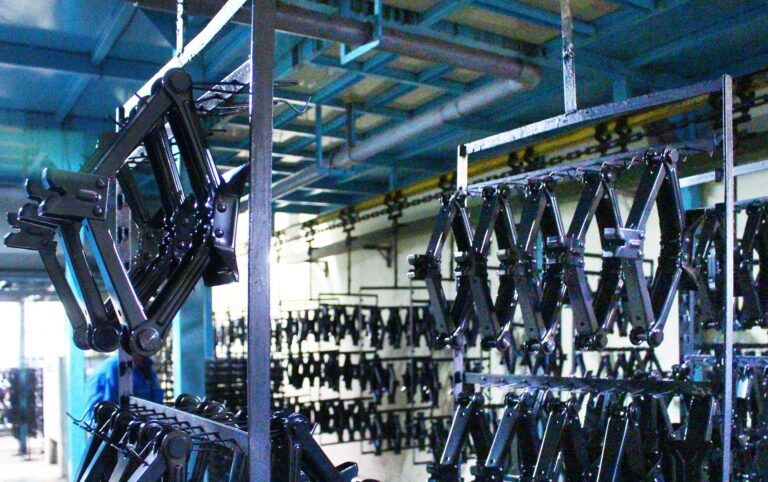

Parts on ED conveyor
ED filtration system
Tell us your requirements — our engineering team replies within one business day.
