AWARD-WINNING TECHNOLOGY

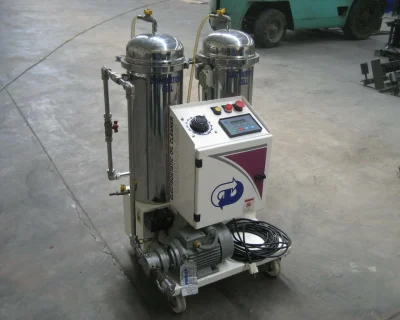

Electrostatic Oil Cleaner

Continuous electrostatic cleaning that removes sub-micron contaminants from hydraulic and lubricating oil — extending oil life and protecting your equipment.

Request a Quote
How It Works
webpc-passthru (1)

BENEFITS

Six reasons plants install CDOC

No more oil changes

Continuous cleaning keeps oil in service indefinitely instead of periodic replacement.

No attendance required

Runs unattended during operation, with alpha-numeric fault detection.

Improves hydraulic performance

Supports high-speed, high-precision hydraulic component performance.

Removes moisture

Built-in dehydration cell removes water / moisture up to 5000 ppm.

Eliminates oil-related breakdowns

Reduces pump, motor, valve failures and leakages caused by contamination.

Low operation cost

Reduced power consumption with an extremely short payback period.

webpc-passthru (3)
webpc-passthru (4)
webpc-passthru (2)

PRINCIPLE OF WORKING

Electrostatic precipitation, two stages

Electrostatic Oil Cleaner uses electrostatic precipitation to remove sub-micron insoluble particles
without affecting soluble oil additives — tiny particles are electrostatically driven to and captured on
charged electrode walls.

01 Stage 1 — Dehydration cell: oil is pumped from the sump and water / moisture up to 5000 ppm is removed
02 Stage 2 — High voltage (12 kV, 12 mA): charged contaminants are attracted to and captured on
collector plates
03 Clean oil flows from the top outlet back to the oil sump

CDOC CLEANS

What it removes

Contamination up to < 0.01 µ Metallic contaminant Non-metallic contaminant Dust, rust Moisture up to 5000 PPM Suspended carbon particles Sludge, tar & varnishes

APPLICATIONS

Industries that rely on CDOC

Plastic Machinery Construction Machinery Hydraulic Press Aviation Mining Machinery Transmission Equipment Machine Tools Automobile Industry Power Press Steel Industries Sugar Mill Turbine Oil in Hydro Power Station Instrumentation & Refrigeration Earth Moving Equipment Aluminum / Non-Ferrous Extrusion Plants Plywood Hot Press Servo Valve-Controlled Hydraulic Systems Leather Processing

OPERATION PARAMETERS

Operating envelope

< 60°C

TEMPERATURE

< 200 cs

 OIL VISCOSITY

< 5000 PPM

MOISTURE CONTENT

Not Compatible

WATER-BASE / DETERGENT OI
