Powder Coating Line Layout
The full line layout — from part entry through
pre-treatment, powder booth and curing oven exit.
01 Pre-treatment stage
02 Electrostatic powder application booth
03 Curing oven
You are here:
Powder Coating System
Powder Coating System
Powder coating is applied electrostatically and cured under heat to form a
durable “skin.” Used for household appliances, aluminium extrusions,
drum hardware, automobile and bicycle parts.
~100%
powder utilization
Electrostatic
application method
Pre-treat → Cure
one combined line
Process
One line, part prep to cure
Part preparation
Integrated pre-treatment stage prepares the surface before powder application.
Overspray recovery
Recycling system captures overspray for near-100% coating material utilization.
Curing oven
Sized to part throughput, allowing the coating to flow and form a durable finish.
Combination design
Suited to metal components of varying shape and size in one continuous line.
gallery
Line & equipment
Powder booth

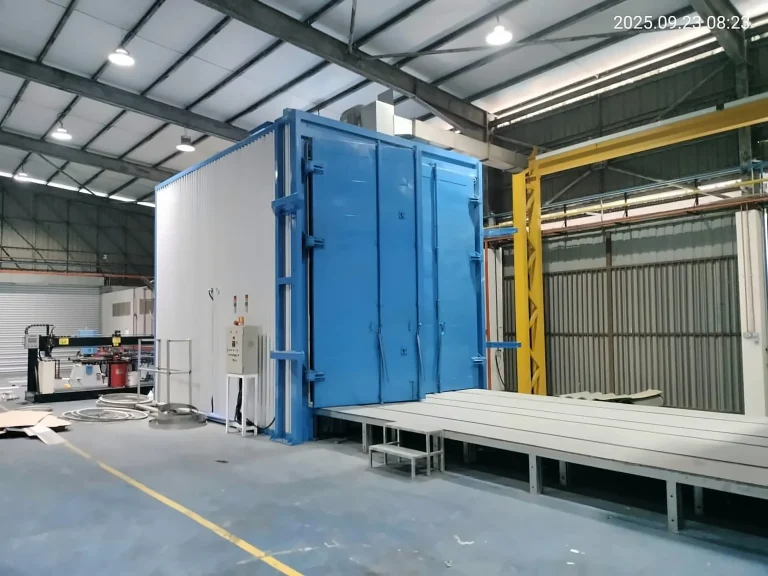

Curing Oven

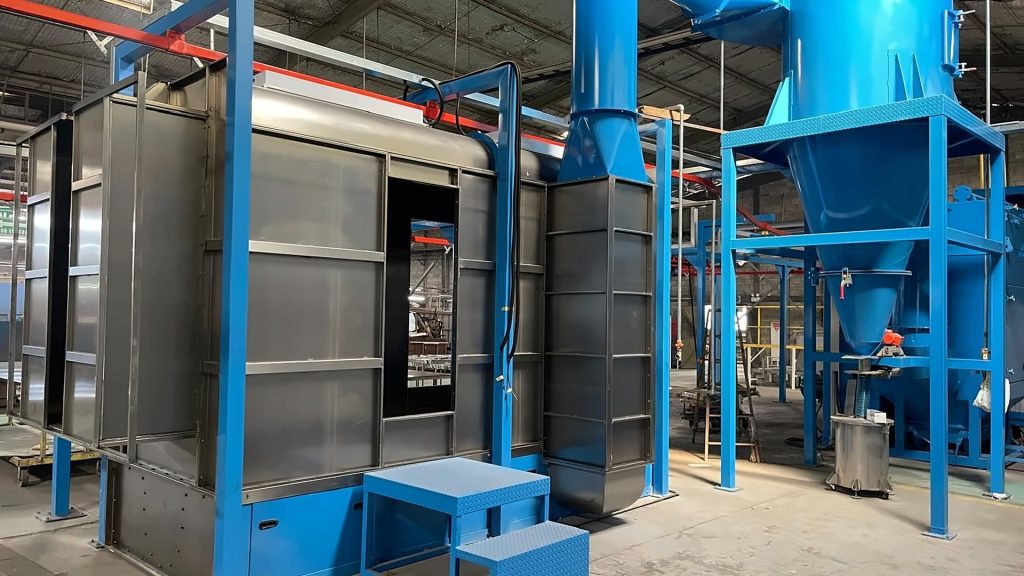

Booth & cyclone

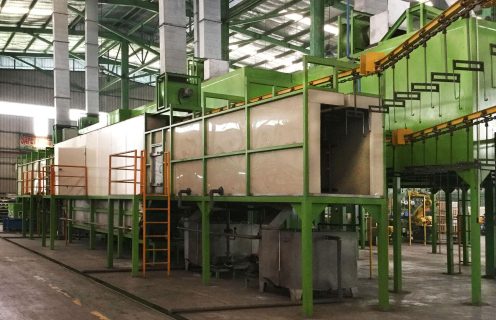

Line overview
Powder feed hopper
Cyclone recovery unit
