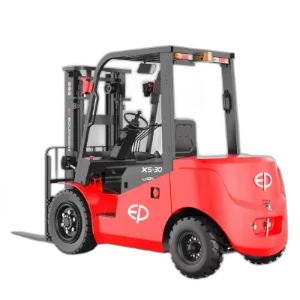

Counterbalance ForkliftEP
EFXZ301-H/E
- 3000 kg
- 80 V Li-Ion
- 3000 mm
Key specifications
| Rated capacity | 3,000 kg |
| Load center distance | 500 mm |
| Lift height | 3,000 mm |
| Free lift | 120 mm |
| Height, mast lowered / extended | 2,100 / 4,110 mm |
| Mast tilt forward / backward | 6° / 12° |
| Fork dimensions | 45 × 122 × 1,070 mm |
| Overall length × width | 3,730 × 1,225 mm |
| Turning radius (H / E) | 2,400 / 2,340 mm |
| Service weight (H / E) | 4,200 / 4,110 kg |
| Travel speed, laden / unladen | 11 / 12 km/h |
| Lifting speed, laden / unladen | 0.26 / 0.36 m/s |
| Max. gradeability, laden / unladen | 15 / 24 |
| Drive motor / lift motor | 10 kW / 16 kW (AC) |
| Battery | 80 V / 280 Ah lithium-ion |
| Tyres (pneumatic) front / rear | 28×9-15-14PR / 6.50-10-10PR |
| Operator type | Seated |
| Sound pressure at driver’s ear | < 74 dB(A) |
