Painting Line with Custom Jigs Ready for Commissioning, Tangerang

The Client & Challenge

The customer paints large numbers of small parts. Hanging them one by one is slow, so the line needed jigs that hold many parts at once and move them through the booth on the conveyor.

Our Solution

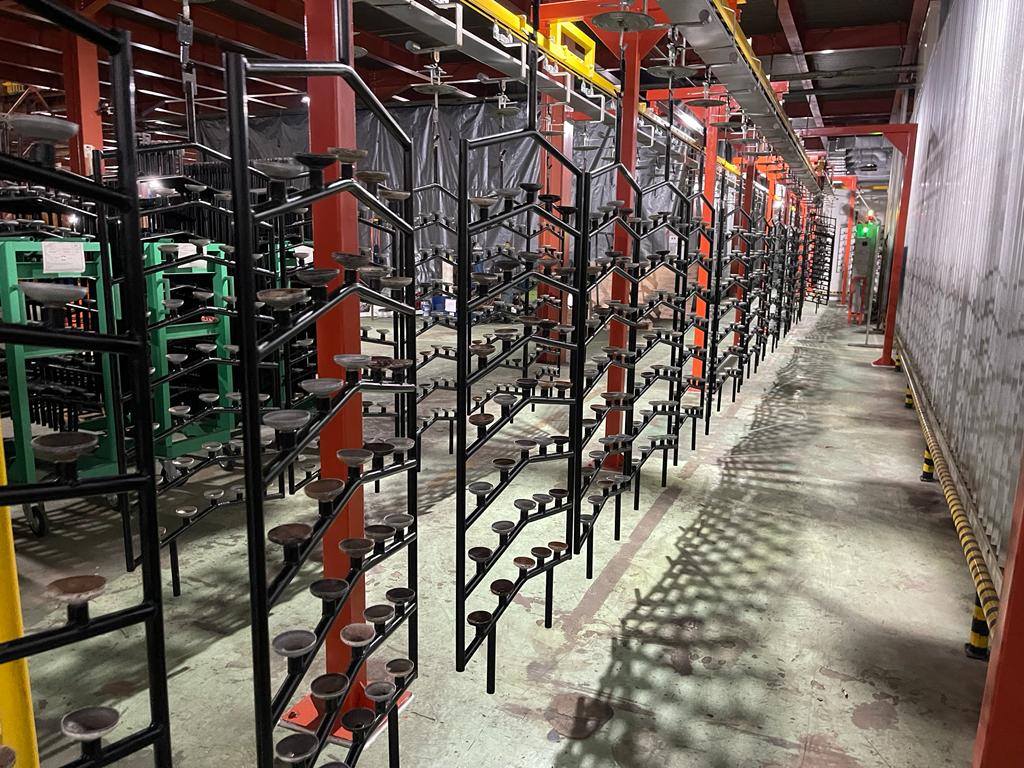

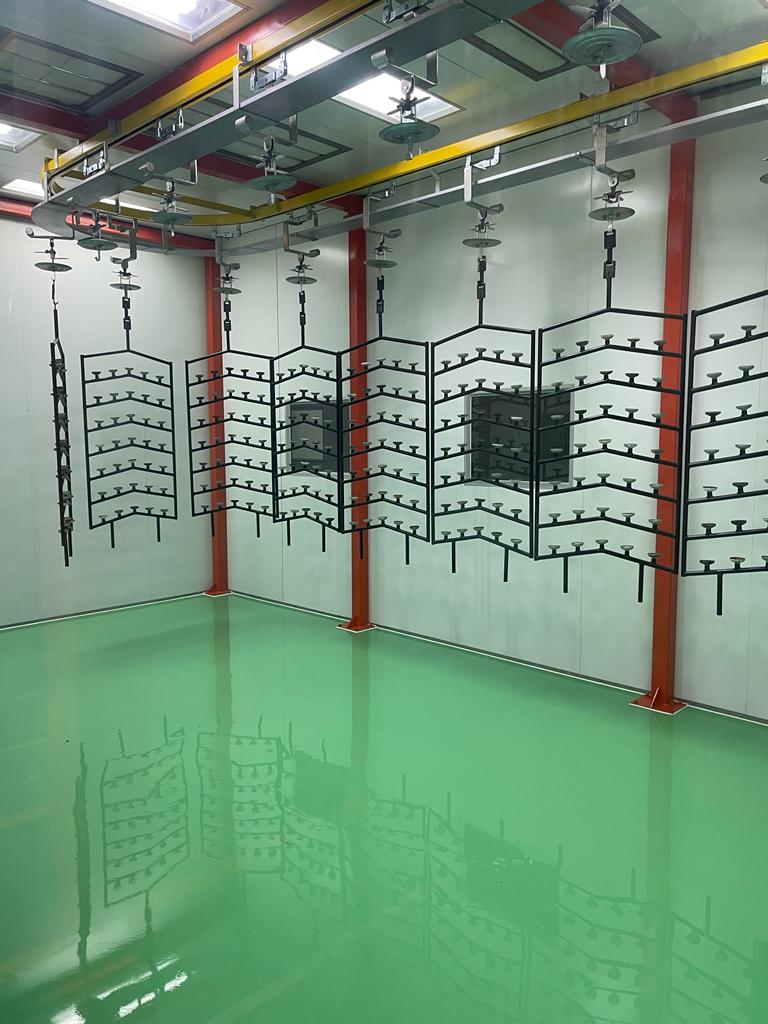

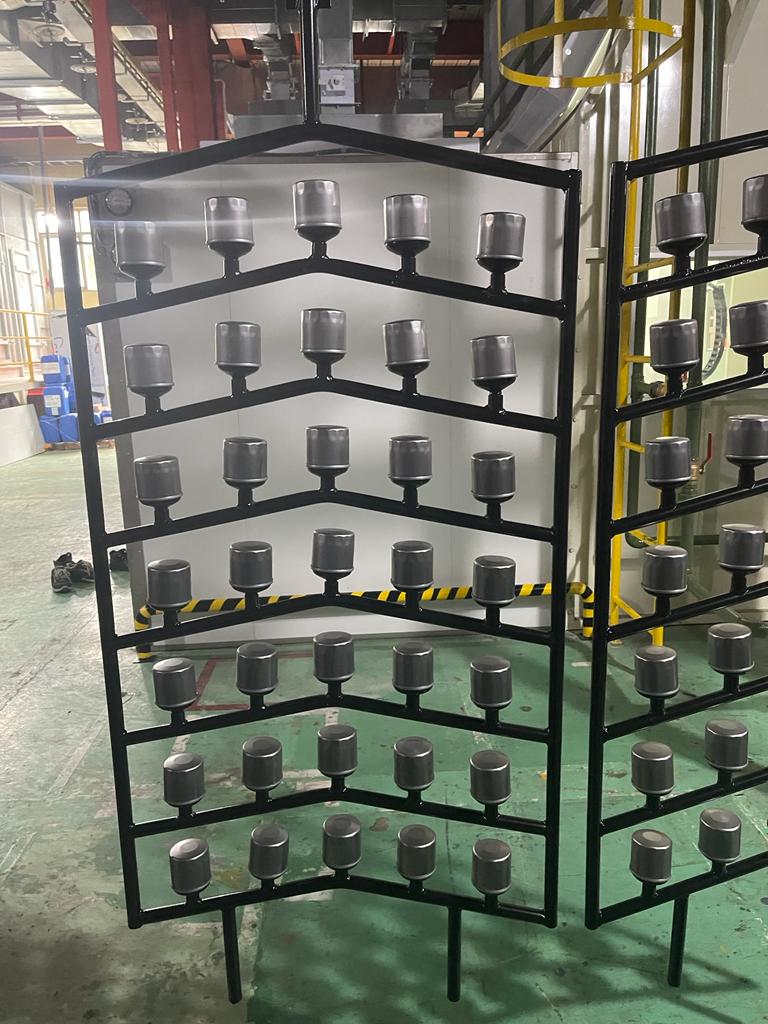

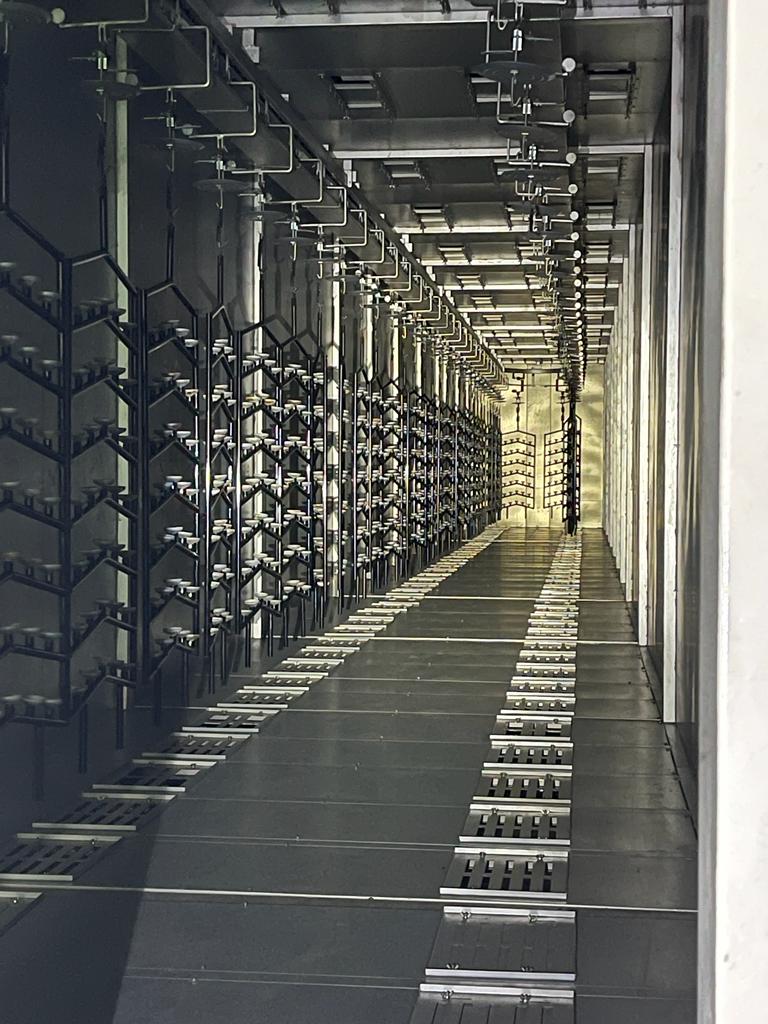

Ovindo designed and fabricated custom multi-part jigs that hang from the overhead conveyor, together with the painting booth and its water-curtain back wall. The jigs position every part at the same angle to the spray, so coating thickness stays even across the whole load.

Equipment & Specifications

• Overhead conveyor with hanging points
• Custom multi-part painting jigs

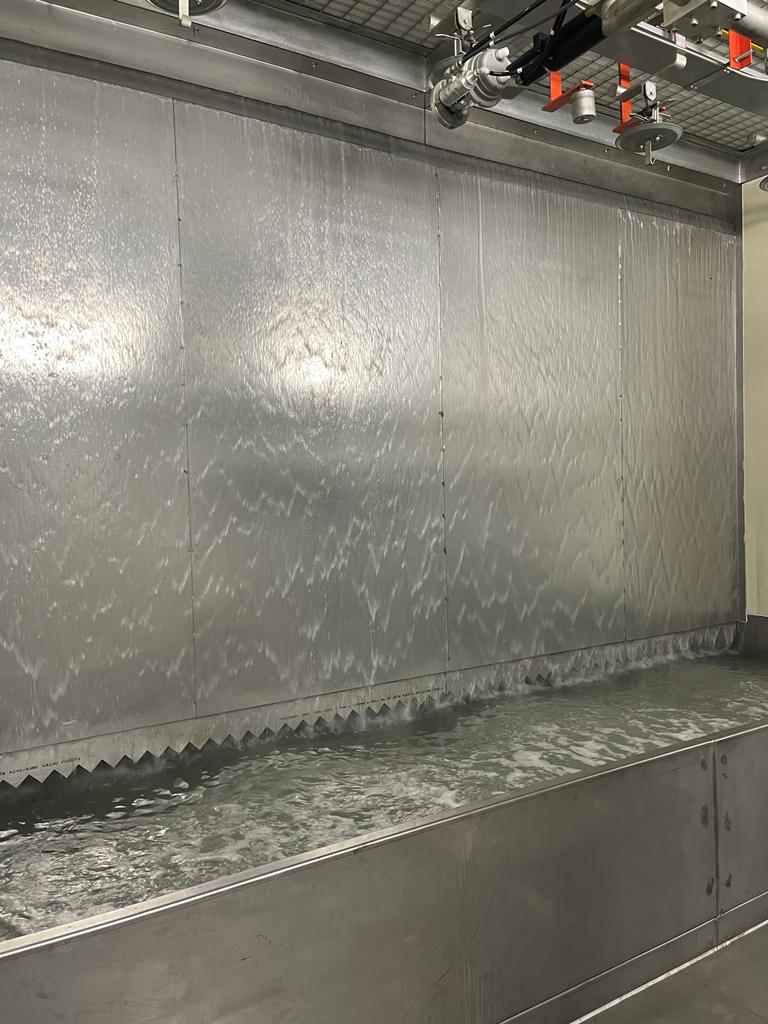

• Painting booth with water-curtain wall
• Epoxy-coated booth floor
• Installed and prepared for commissioning

Result

With the line installed, the customer can load many parts per jig and paint them in one pass, raising throughput. Ask our team about jigs and conveyors for your parts.
